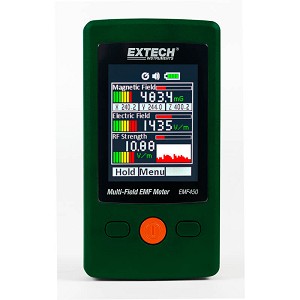

Extech EMF450 Multi-Field EMF Meter with Color Display

0 Review(s) Write a Review

On Sale: $330.99

The Extech EMF450 Multi-Field EMF Meter with Color Display measures magnetic fields, electric fields, and radio frequency strength simultaneously on a large 2.4” colored display.

MFG Part No.: EMF450

Availability: Available for Orders, Coming Soon Free Shipping.

Price Match Guarantee Yes

Quantity

Description
Features
Specifications
Applications
Resources

Extech EMF450 Multi-Field EMF Meter with Color Display is designed to measure radio frequency strength, magnetic fields, and electric fields concurrently on the same display. The Extech EMF450 features an easy to read 2.4” colored TFT display, adjustable screen brightness, a triple axis design for its magnetic field sensor, the ability to store up to 20 RF measurements, and more.

Characteristics:	Extech EMF450 Multi-Field EMF Meter with Color Display
	Measures radio frequency (RF), magnetic field, and electric field strength
	Magnetic field sensor features a triple axis design (X, Y, Z)
	Audible alarm rings when readings are in red region
	Easy-to-read 2.4" (240 x 320 ) color TFT display
	User-Adjustable screen brigthness (low, medium, high)
	Unit stores up to 20 RF readings
	Data hold and automatic power off
	Five on-board languages: English, Traditional/Simplified Chinese, Japanese, Spanish
	Includes 3 AAA batteries and USB power supply cable

Specifications:	Extech EMF450 EMF Meter for Magnetic Electric and Radio Frequencies
	Range	Max Resolution	Basic Accuracy
Magnetic Fields (50/60Hz)	20/200/2000mG 2/20/200µT	0.02/0.1/1mG 0.02/0.1/1µT	±(15%+100 digit)
Electric Fields (50/60Hz)	50V/m to 2000V/m	-	±(7% + 50dgt)
RF Strength (50MHz to 3.5 GHz)	0.02uW/m² to 554.6mW/m²	0.02µW/m²	-
	0.02uW/cm² to 55.4uW/cm²	0.002µW/cm²	-
	36.1mV/m to14.46V/m	0.2mV/m	-
	0.02mA/m to 38.35mA/m	0.2µA/m	-
	-51dB to 16dBm	2dB	±2dB at 2.45GHz
Dimensions/Weight	4.5 x 2.4 x 0.8" (115 x 60 x 21mm)/ 4.2oz (120g)
Bargraph	Magnetic Fields	RF Strength	Electric Field
Green	0 to 10.00mG	0 to 0.99mW/m² 0 to 0.59V/m	0 to 500V/m
Yellow	10.01 to 100mG	1 to 9.99mW/m² 0.6 to 1.9V/m	501 to 1000V/m
Red	101 to 2000mG	>10mW/m² >2V/m	>1001V/m

Applications:	Extech EMF450 Multi-Field EMF Meter with Color Display
	Home Appliances
	Power Lines
	Electrical Appliances
	Industrial Devices
	Mobile Cell Phones
	Base Stations

Extech EMF450 Multi-Field EMF Meter with Color Display
