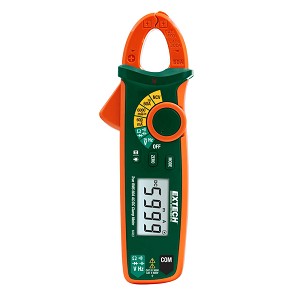

Extech MA63 True RMS 60A ACDC Clamp Meter Non-Contact Volt Probe

0 Review(s) Write a Review

On Sale: $250.99

MFG Part No.: MA63

Availability: Available for Orders, Coming Soon

Quantity

Description
Features
Specifications
Applications
Resources

Extech MA63 True RMS 60A ACDC Clamp Meter Non-Contact Volt Probe is an AC/DC current digital clamp meter designed for taking measurements in tight spaces and features full overload protection and Non-Contact voltage detection. The Extech MA63 is manual ranging and has 3 selectable ranges for current, measures up to 600V AC/DC voltage, and boasts a 6000mA range that is useful for automotive applications. The Extech MA63 also provides a Unique VFC (variable frequency control) mode for troubleshooting HVAC problems, reads resistance, capacitance, frequency, diode and continuity, and includes low battery display and auto-off functionality.

(0)

AEMC 405 TRMS Digital Clamp Meter

~~$415.00~~ $394.25 Sale

In Stock. Free Shipping.

Add To Cart

(0)

Extech PQ2071 1000A True RMS AC Clamp-on Power Meter

$350.89

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Amprobe AMP-320 TRMS Clamp Meter for Motor Maintenance Technicians

~~$321.99~~ $265.16 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Amprobe AMP-330 TRMS Clamp Meter for Motor Maintenance Technicians

~~$377.99~~ $311.28 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Klein Tools CL700 TRMS Digital Clamp Meter 600A AC Current AC/DC Voltage Temperature

~~$153.94~~ $109.97 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke 902 FC Wireless True-RMS HVAC Clamp Meter

~~$389.99~~ $350.99 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

Characteristics:	Extech MA63 True RMS 60A ACDC Clamp Meter Non-Contact Volt Probe
	Takes accurate readings with TRMS measurements even in the presence of noisy, distorted or non-sinusoidal waveforms
	Measure in tight spaces using the 0.7" (17mm) clamp jaw
	AC and DC current readings
	6000 count LCD display with backlight
	NCV Detection with LED indication
	Low pass filter for accurate readings of variable frequency drive signals in VFC mode (Variable Frequency Control)
	Reads NCV, AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity
	Full range Protection from Overload
	CAT II-600V and CAT III-300V safety rating
	Data Hold function, auto-off, and low battery display
Includes:	Test leads, 2 AAA batteries and carrying case

Specifications:	Extech MA63 True RMS 60A ACDC Clamp Meter with Non-Contact Voltage Test
True RMS	Yes
Display counts	6000 count backlit LCD
Jaw size/Cable size	0.7" (18mm); 300MCM
AC Current	600mA, 6000mA, 60A
DC Current (max resolution)	6000mA, 60A (1mA)
Max Resolution	0.1mA (AC)
Basic ACA Accuracy (% rdg)	±2.0%
AC Voltage (Max Res.)	6V, 60V, 600V (1mV)
DC Voltage (Max Res.)	600mV, 6V, 60V, 600V (0.1mV)
Resistance (Max Res.)	600, 6k, 60k, 600k, 6M, 60M (0.1O)
Capacitance (Max Res.)	6.2nF, 620µF, 62mF (1pF)
Frequency (Max Res.)	10Hz to 60kHz (0.001Hz)
Diode/Continuity	Yes
Data Hold	Yes
UL, ETL, CE, Category Rating	ETL, CE, CAT III-300V, CAT III-600V
Dimensions	6.9x2.4x1.3" (175x60x33.5mm)
Weight	6oz (170g)
Warranty	1 year

Applications:	Extech MA63 True RMS 60A ACDC Clamp Meter Non-Contact Volt Probe
	Electrical
	HVAC
	Automotive

Extech MA63 True RMS 60A ACDC Clamp Meter Non-Contact Volt Probe
