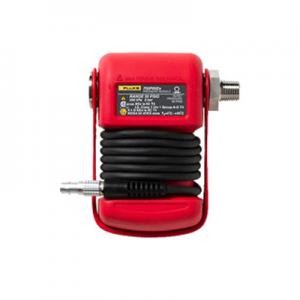

Fluke 700P01EX IS Pressure Module

0 Review(s) Write a Review

DISCONTINUED

Fluke 700P01Ex I.S. Pressure Module, 0-10 inch HO2 diff. Mfg part Fluke 2097578. Fluke parts and accessories.

Availability: DISCONTINUED

Description
Features
Specifications
Resources

Fluke 700P01Ex features Display pressure readings in any of 10 different pressure units you specify in the calibrator setup, Rugged urethane molded case protects the module from rough handling and harsh conditions, Features internal temperature compensation from 0 degrees C to 50 degrees C for full-accuracy performance, Includes NIST-traceable calibration certificate, Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source, Certified by CSA: I.S. Class I, Div 1, Groups A-D T4, Ta = 0 degrees C to 50 degrees, ATEX II 1G EEx ia IIC T4 Compliant. One year warranty.

(0)

Fluke VPS410-R Voltage Probe Set

DISCONTINUED

DISCONTINUED

(0)

Fluke 3310-PR-TF Thin Flex Current Probe

DISCONTINUED

DISCONTINUED

(0)

Fluke FS17XX IP65-TF 3000a Ip65 4-Ph Fluke 1743/4 Thin Flexi Set

DISCONTINUED

DISCONTINUED

(0)

Fluke I5A/50A Clamp PQ3 3-Phase 5a/50a Mini Current Clamp Set

DISCONTINUED

DISCONTINUED

(0)

Fluke TPS FLEX 18-TF 100/500A Fluke 1760 Thin Flexi

DISCONTINUED

DISCONTINUED

(0)

Fluke 435-II Advanced Energy and Power Quality Analyzer

DISCONTINUED

DISCONTINUED

Specifications:	Fluke 700P01EX IS Pressure Module
Range	10.00 in. H2O / 2.5 kPa
Resolution	0.01 / 0.002
Reference Uncertainty	(23 ± 3 degrees C) 0.200 percent
Total Uncertainty	1 year 0.300
High Side Media	Dry
Low Side Media	Dry
Note 1)	Total uncertainty, one year for temperature range 0 degrees C + 50 degrees C Total uncertainty, 1.0 percent of full span for temperature range - 10 degrees C to 0 degrees C. Compensated temperature range is 15 degrees C to 35 degrees C
Note 2)	"Dry" indicates dry air or non-corrosive gas as compatible media "316 SS" indicates media compatible with Type 316 Stainless Steel. "C276" indicates media compatible with Hastelloy C276

Characteristics:	Fluke 700P01EX IS Pressure Module
	Display pressure readings in any of 10 different pressure units you specify in the calibrator setup
	Rugged urethane molded case protects the module from rough handling and harsh conditions
	Features internal temperature compensation from 0 degrees C to 50 degrees C for full-accuracy performance
	Includes NIST-traceable calibration certificate
	Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source
	Certified by CSA: I.S. Class I, Div 1, Groups A-D T4, Ta = 0 degrees C to 50 degrees
	ATEX II 1G EEx ia IIC T4 Compliant
	One year warranty
