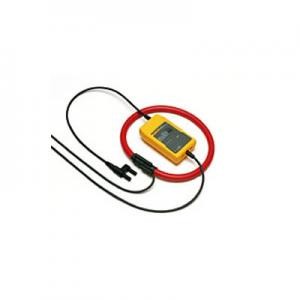

Fluke I2000 Flex AC Current Probe 2584912

0 Review(s) Write a Review

On Sale: ~~$559.99~~ $503.99

Retail Price:$559.99

You Save:$56.00(10%)

Fluke I2000 Flex AC Current Probe. The i2000 is an AC current probe utilizing the Rogowski principle. It can be used to measure currents up to 2000A when used in conjunction with multimeters, recorders or data loggers. Mfg part Fluke 2584912.

MFG Part No.: 2584912

Availability: Available for Orders, Coming Soon Free Shipping.

Free Gift: Fluke Free Product Promo

Price Match Guarantee Yes

Quantity

Description
Features
Specifications
Resources

Fluke I2000 Flex AC Current Probe is an AC current probe utilizing the Rogowski principle. It can be used to measure currents up to 2000A when used in conjunction with multimeters, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas. Mfg part Fluke 2584912.

Electrical specifications
Current ranges	20 A 200 A 200 A AC rms
Output sensitivity (AC-coupled)	100 mV 10 mV 1 mV 1 mV per A
Load impedance	100 k ohm minimum
Accuracy	at +25 degrees C Â± 1 percent of range (45 Hz to 65 Hz)
Linearity	10 percent to 100 percent of range Â± 0.2 percent of reading
Noise	8 mV ac rms (30 A) 2 mV ac rms (300 A, 3000 A)
Frequency range	10 Hz to 20 kHz (-3 dB)
Phase error	< Â± 1 degree (45 Hz to 65 Hz) Â± 10 degree (at 20 kHz)
Position sensitivity	with cable > 25 mm from the coupling Â± 2 percent of range
External field	with cable > 200 mm from the head Â± 1 percent of range
Power supply	2 x AA/MN 1500/LR6 Alkaline, 200 hours, low battery indicator
Temperature Coefficient	Â± 0.08 percent of reading per degrees C
Working voltage see Safety standards section	600 V AC rms or DC
General Specifications
Head Circumference	610 mm (24 in)
Head cable diameter	14.3 mm (0.56 in)
Head bend radius	38.1 mm (1.5 in)
Cable length (head to electronics)	2 m (6.56 ft)
Output connection	Molded 4 mm safety plugs (not integrated)
Operating temperature range	0 degrees C to +70 degrees C (32 degrees F to 158 degrees F) (head and electronics)
Storage temperature range	-40 degrees C to +105 degrees C (-40 degrees F to 221 degrees F) (head) -20 degrees C to +85 degrees C (-4 degrees F to 185 degrees F) (electronics)
Operating humidity	15 pwecwnr to 85 percent (non-condensing)
Weight	180 g (6.34 oz) (head) 190 g (6.70 oz) (electronics)
Safety standards	EN 61010-1: 2001 EN 61010-2-032: 2002 EN 61010-031: 2002 600 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 600 V ac rms or dc and frequencies below 1 kHz.
EMC standards	EN 61326: 1998 +A1, A2, and A3
Dimensions	HxWxD 116 mm x 68.5 mm x 30 mm (4.56 in x 2.69 in x 1.18 in)

Proposition 65 Warning for California Residents: This product can expose you to chemicals including Benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
