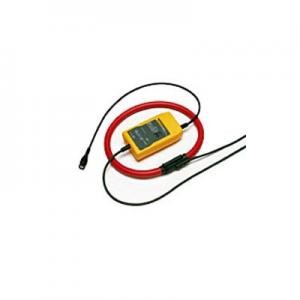

Fluke I3000S Flex-36 AC Current Probe

Fluke I3000S Flex-36 AC Current Probe - Fluke 2584901

0 Review(s) Write a Review

On Sale: ~~$874.99~~ $787.49

Retail Price:$874.99

You Save:$87.50(10%)

Fluke I3000S Flex-36 AC Current Probe is an ac current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. Mfg part Fluke 2584901. Fluke parts and accessories.

MFG Part No.: 2584901

Availability: Available for Orders, Coming Soon Free Shipping.

Free Gift: Fluke Free Product Promo

Price Match Guarantee Yes

Quantity

Description
Features
Specifications
Resources

Fluke I3000S Flex-36 AC Current Probe is an ac current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas. Mfg part Fluke 2584901. Fluke parts and accessories.

Electrical specifications
Current ranges	30 A 300 A 3000 A AC rms
Output sensitivity (AC-coupled)	100 mV 10 mV 1 mV per A
Load impedance	100 k ohm minimum
Accuracy	at +25 degrees C Â± 1 percent of range (45 Hz to 65 Hz)
Linearity	10 percent to 100 percent of range Â± 0.2 percent of reading
Noise	8 mV ac rms (30 A) 2 mV ac rms (300 A, 3000 A)
Frequency range	10 Hz to 50 kHz (-3 dB)
Phase error	< Â± 1 degree (45 Hz to 65 Hz) Â± 10 degree (at 20 kHz)
Position sensitivity	with cable > 25 mm from the coupling Â± 2 percent of range
External field	with cable > 200 mm from the head Â± 1 percent of range
Power supply	2 x AA/MN 1500/LR6 Alkaline, , 400 hours, low battery indicator or dedicated external power supply
Temperature Coefficient	Â± 0.08 percent of reading per degrees C
Working voltage see Safety standards section	600 V AC rms or DC
General Specifications
Head Circumference	915 mm (36 in.)
Head cable diameter	14.3 mm (0.56 in)
Head bend radius	38.1 mm (1.5 in)
Cable length (head to electronics)	2 m (6.56 ft)
Output connection	0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
Operating temperature range	-20 degrees C to +90 degrees C (-4 degrees F to 190 degrees F) (head) -20 degrees C to +85 degrees C (-4 degrees F to 185 degrees F) (electronics)
Storage temperature range	-40 degrees C to +105 degrees C (-40 degrees F to 221 degrees F) (head) -20 degrees C to +85 degrees degrees C (-4 degrees F to 185 degrees F) (electronics)
Operating humidity	15 percent to 85 percent (non-condensing)
Weight	180 g (0.396 lb) (head) 190 g (0.419 lb) (electronics)
Safety standards	BS EN 61010-1: 2001 BS EN 61010-2-032: 2002 BS EN 61010-031: 2002 600 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 600 V AC rms or dc and frequencies below 1 kHz.
EMC standards	EN 61326: 1998 +A1, A2, & A3
Maximum conductor size	610 mm or 914 mm, depending on model

Proposition 65 Warning for California Residents: This product can expose you to chemicals including Benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

(0)

Fluke TL930 24 inch Patch Cords 1616671

~~$33.99~~ $30.39 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke TLK287 Electronics Master Test Lead Set Fluke 3045631

~~$224.99~~ $202.49 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke TP38 Insulated Test Probes 1541636

~~$31.99~~ $28.60 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke TP4 Test Probes Fluke 650895

~~$29.99~~ $26.81 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke C290 Hard Shell Carrying Case

~~$342.99~~ $308.69 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Fluke EI-162BN Split Core Transformer

$3,813.99

Available for Orders, Coming Soon Free Shipping.

Add To Cart

Three ranges:	30 A, 300 A & 3000 A, 1, 10 or 100 mV/A output
	Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
	Maximum conductor diameter 178 mm (7 in.)
	CAT III 600V safety rating
