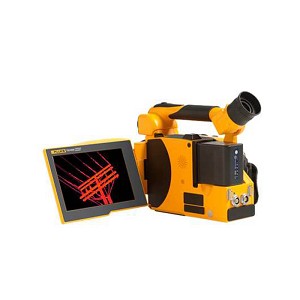

| Specifications: | Fluke TiX640 Infrared Camera Expert Series |
| Key features |
| IFOV (spatial resolution | 0.8 mRad |
| Image resolution (pixel) | 640 x 480 (307,200 pixels) |
| Frame rate (@ max. image resolution) | 60 Hz |
Subwindowing modes available:
(add-on at time of order–subwindowing
options are not available on 9 Hz models) | Option 1: 384 × 288 (120 fps)
Option 2: 640 × 120 (240 fps) |
| Field of View (FOV) w/standard 30mm lens | 30.9° x 23.1° |
| Thermal sensitivity [NETD] | = 0.03 °C at 30 °C target temp (30 mK) |
| Spectral range | 7.5 µm to 14 µm |
| Wireless connectivity |
| Fluke Connect compatible | Yes, with Fluke Connect® WiFi SD Card (available in approved certified regions only) |
| IR-Fusion technology |
| AutoBlend | Yes |
| Viewing modes | Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) |
| Focus systems |
| Auto focus | Yes |
| Manual focus | Yes, with the touch of a finger for tighter views |
| EverSharp multifocal recording | Yes. Multifocal recording captures images from different focal distances and combines them into one image
displaying each object sharply for the best image quality. |
| Temperature measurement |
| Temperature measurement range | -40 °C to +1200 °C (-40 °F to 2192 °F) |
| Measurement accuracy | +/- 1.5 °C or +/- 1.5 % |
| Correction functions | Emissivity (manual or material table) |
| Data storage and image capture |
| Image / video storage | SDHC memory card |
| Interfaces for image/data transfer | Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015.
SmartView software: SD card. USB 2.0, GigE Vision and RS232 available in 2015. |
| General specifications |
| Laser pointer | Yes, laser class: 2 |
| Display | Extra-large 5.6“ color TFT display, 1280 × 800 pixel resolution, suitable for daylight operation |
| Geo-localization | Built-in GPS for geo-referencing |
| Digital visible light camera | Up to 8 Megapixel resolution for image and video recording |
| Digital zoom | Up to 32x digital zoom |
| Text annotation | Yes |
| Voice annotation | Yes |
| Audio | Integrated microphone and loudspeaker for voice annotations |
| A/D conversion | 16 bit |
| Power supply | External: 12 VDC ... 24 VDC, Battery: standard Li-Ion video camera battery |
Replaceable Smart Batteries
with LED level indicator | One |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Storing temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity | Relative humidity 10 % to 95 %, non-condensing |
| Shock | Operational: 25G, IEC 68-2-29 |
| Vibration | Operational: 2G, IEC 68-2-6 |
| Protection class | IP54 |
| Ergonomics | Camcorder |
| Dimensions (L x W x H, with standard 30 mm lens) | 206mm x 125mm x 139mm
(8.1 in x 4.9 in x 5.5 in) |
| Weight (with standard 30 mm lens) | 1.4 kg (3.1 lb) |
| Measurement functions (selection) | Multiple measurement spots & regions of interest (ROIs), hot/cold spot detection, isotherms, profiles, differences |
| Automatic functions (selection) | Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence |
| SmartView software | Yes |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish |
