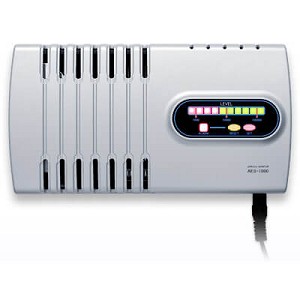

Kanomax AES-1000 Particle Monitor Aerosol

Kanomax AES-1000 Particle Monitor for Cleanrooms

0 Review(s) Write a Review

DISCONTINUED

Kanomax AES-1000 Particle Monitor Aerosol provides sensitive and stable monitoring and detection for any application needing simplified cleanliness measurements, like cleanroom gowning areas. Kanomax AES-1000 uses a small heater to create an internal updraft and prevent choked flow.

Availability: DISCONTINUED

Description
Features
Specifications
Applications
Resources

(0)

Kanomax S505 Portable Gas Monitor For Indoor and Outdoor Air Quality Testing

DISCONTINUED

DISCONTINUED

(0)

Kanomax MS1UB CO2 CO Temp and RH Sensor Head for S Series

DISCONTINUED

DISCONTINUED

(0)

Kanomax S-6551-1E Climomaster Digital Anemometer and 6551-2G Probe

DISCONTINUED

DISCONTINUED

(0)

Kanomax 3886 Digital Handheld Particle Counter

DISCONTINUED

DISCONTINUED

(0)

Kanomax OMX-ADM Odor Evaluation Tester for Medical Field

DISCONTINUED

DISCONTINUED

(0)

Kanomax OMX-TDM TVOC Odor Strength Tester

DISCONTINUED

DISCONTINUED

Characteristics:	Kanomax AES-1000 Particle Monitor Aerosol
	Stable and reliable detection for 0.5 micron and larger particulates
	Air cleanliness level easy to read with range of: ISO5 / Class 100 - ISO8 / Class 100,000
	Small heater to creates an internal updraft and prevents choked flow
	Alarm goes off when setting level exceeds required cleanliness
	Can be linked to Ethernet system for multiple room monitoring
	20,000 hour laser life
	Easy to install, compact design

Specifications:	Kanomax AES-1000 Particle Monitor Aerosol

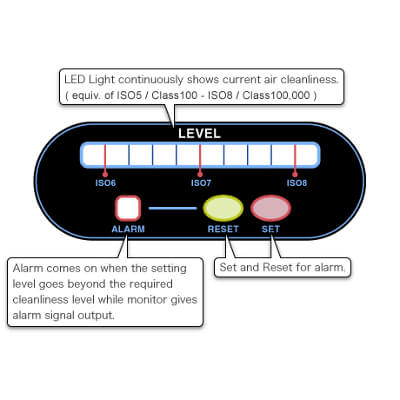

Display	10 x LED lights shows equivalent of Class 100 ~ Class 100,000
Detection method	Light Scattering
Min. detectable size	0.5 µm
Air Sampling method	Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes
Cleanliness Class	From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000
Alarm Display	Alarm LED light comes on when reaching to setting level
Alarm Output	TTL open collector output in sync with alarm display
Interface	Ethernet x 1 port
Power Supply	DC12 V +/-10% 500mA
Operating Temp/Humidity	0ºC~40ºC 30% RH~80% RH

Applications:	Kanomax AES-1000 Particle Monitor Aerosol
	Any areas with simple cleanliness measurement needs (cleanrooms, etc.)

Kanomax AES-1000 Particle Monitor for Cleanrooms
