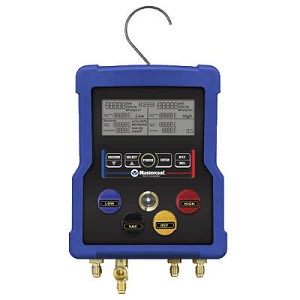

Mastercool 99972 4-Way HVAC Digital Manifold With 72in Hose Set

Mastercool 99972 4-Way Digital HVAC Charging Manifold with 72in Hoses

0 Review(s) Write a Review

DISCONTINUED

Mastercool 99972 4-Way HVAC Digital Manifold With 72in Hose Set reads over 60 refrigerants, records and store up to 24 hours of data, and displays Pressures, Saturated, Actual, Superheat and Subcool Temperatures. Mastercool 99972 also has a ball valve design that includes 3/8” bore through the block, for increased flow.

Availability: DISCONTINUED

Description
Features
Specifications
Resources

(0)

Mastercool 99103-A 2-Way Digital HVAC Charging Manifold

DISCONTINUED

DISCONTINUED

(0)

Mastercool 52246 Calculator for Superheat and Subcooling

DISCONTINUED

DISCONTINUED

(0)

Mastercool 52224-C IR Thermometer with Dual Lasers

DISCONTINUED

DISCONTINUED

(0)

Mastercool 55200 Inspector HVAC Refrigerant Leak Detector with UV

DISCONTINUED

DISCONTINUED

(0)

Mastercool 96461 4-Valve Aluminum Manifold with 60in Ball-Valve Hoses

DISCONTINUED

DISCONTINUED

(0)

Mastercool 93161 2-Valve Aluminum Manifold with 60in Hoses

DISCONTINUED

DISCONTINUED

Characteristics:	Mastercool 99972 4-Way HVAC Digital Manifold With 72in Hose Set
	Record and store up to 24 hours of data or 15 jobs
	Records and stores data directly into the manifold memory
	Downloads data at a rate 115 kb per second (24 hrs of data = approx. 15 min of download time)
	Uses Mastercool’s Data Logger Application to easily view data
	Over 60 Refrigerants
	Displays Pressures, Saturated, Actual, Superheat and Subcool Temperatures
	Clamp-on Thermocouple Connector displays Actual Temperature and Automatically Calculates Superheat or Subcool Temperature
	Vacuum Sensor Cable displays Deep Vacuum
	Ball valve design includes 3/8” bore through the block for increased flow

Specifications:	Mastercool 99972 4-Way HVAC Digital Manifold With 72in Hose Set
Pressure Display	PSI, INHg, Bar, MPa, Kg/cm2
Temperature Display	°F or °C
Deep Vacuum Display	Micron, mBar, KPa, Pa, Torr, mTorr, mmHg
Sensing Resolution	1 psi(.07 Bar, .007 MPa, .07 Kg/cm2)
Sensing Accuracy	±1 psi or 1% of reading (whichever is greater)
Working Pressure	0 to 750 psi (52 Bar, 5 MPa, 52 Kg/cm2)
Proof Pressure	1000 psi (70 Bar, 7 MPa, 70 Kg/cm2) (Tolerable pressure w/o internal damage)
Refrigerant Temperature Range	-40 to 200°F (-40 to 93°C)
Operating Temperature	32 to 122°F (0 to 45°C)
Temperature Accuracy	±1°F (±0.5°C) between 32 to 160°F (0 to 71°C
Storage Temperature	10 to 120°F (-12 to 49°C)
Connections	1/4” M-Flare
Power	9V DC battery with optional AC/DC adapter
Battery Life	30-36 hours pressure and temperature mode only (continuous use) 25-30 hours vacuum and backlight mode (continuous use)
Auto-Off	15 min. with disabling capability
Refrigerants	New refrigerants can be updated with a USB connection and Mastercool Software Includes 63 Refrigerants: R11, R12, R13, R21, R22, R23, R32, R113, R114, R115, R116, R123, R124, R125, R134, R134a, R141B, R142B, R143, R143A, R152A, R176, R218, R290, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A (ISCEON MO59), R422A (ISCEON MO79), R422D (ISCEON MO29), R427A (FX100), R501, R502, R503, R504, R507A, R508B, R509A, R600, R600A, R601, R601A

Mastercool 99972 4-Way Digital HVAC Charging Manifold with 72in Hoses
