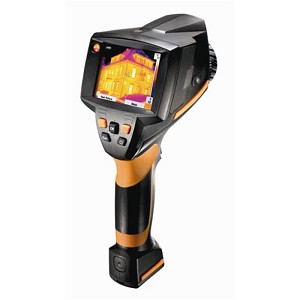

Testo 875i-2 Thermal Imaging Camera

0 Review(s) Write a Review

DISCONTINUED

Testo 875i-2 Thermal Imaging Camera has the sensitivity, resolution, and value that is needed for building science and preventative maintenance professionals. The Testo 875i-2 features a large 3.5" LCD Screen with 160 x 180 resolution with the option to upgrade to SuperResolution 320 x 240. Made in Germany.

Availability: DISCONTINUED

Description
Features
Specifications
Applications

Testo 875i-2 Thermal Imaging Camera has the sensitivity, resolution, and value that is needed for building science and preventative maintenance professionals. Features a large 3.5" LCD Screen with 160 x 180 resolution with the option to upgrade to SuperResolution 320 x 240. The Testo 875i-2 Thermal Imaging Camera also includes TwinPix image blending to make it easier to identify objects when creating reports.

Specifications	Testo 875i-2 Thermal Imaging Camera

Resolution	160 x 120 FPA
Super Resolution (4x pixel upgrade)	320 x 240 - Optional
Thermal Sensitivity (NETD)	50mK
Visual Camera	Included
Standard Lens	32° x 23° / 7" min. focus
Telephoto Lens 9° x7° / 20" Min. focus	Optional
Video Out	Included
Radiometric Video Capture	N/A
Lens Protection Glass	Optional
IRSoft Analysis & Report software	Included
Frequency	33Hz
Focus mode	Manual
Spectral range	8 to 14µm
Image display	3.5" LCD
Rotating Display	N/A
Rotating Handle	N/A
Power LED Lights	Included
TwinPix (Visual & IR Image Blending)	Included
Fusion	Yes
Picture-In-Picture	Yes
Panoramic Assistant	N/A
Site Recognition (Barcode & Database Solution)	N/A
Temperature Range	-4°F to 662°F
Extended High Temperature Range	1022°F Optional
Accuracy	±2% of reading
Emmissivity Correction	0.01 to 1.0
Atmosphere Correction (Reflected Temperature)	N/A
ISO Certification	Optional
Color palettes	9
Voice Annotation	Included
Isotherm Function	Included
Solar Mode (Solar Intensity Values)	Included
Surface Moisture distribution	Included
Humidity measurement with Radio Probe	Optional
File format	.bmt Export formats - bmp, jpg, cvs
Storage device	2GB SD Card
Battery type	Li-ion - 4+ hour run time
Extra Battery	Optional
Battery Charging	Internal
External Rapid Charger	Optional
Operating temperature range	5°F to 104°F
Storage Range (IEC 60529)	-22°F to 140°F
Vibration (IEC 60068-2-6)	2G
Weight	Appoxomately 2 lbs.
Dimensions	6" x 4.2" x 10.3"
Tripod mounting	Included
Housing	ABS Plastic
Software System requirements	Windows XP(SP2), Vista 7 and USB 2.0 Port
Warranty	2 Years

Proposition 65 Warning for California Residents: This product can expose you to chemicals including Benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

(0)

Testo 0554 8802 Spare Battery Testo Parts

DISCONTINUED

DISCONTINUED

(0)

Testo 0390 0081 SO2 Replacement Sensor

DISCONTINUED

DISCONTINUED

(0)

Testo 0635 9542 Vane Probe for Testo 480

DISCONTINUED

DISCONTINUED

(0)

Testo 735-2 Thermometer Three Channel

DISCONTINUED

DISCONTINUED

(0)

Testo 0563-0004 Wireless Smart Probes for Hydronic Heating System

DISCONTINUED

DISCONTINUED

(0)

Testo 0563-0003 VAC Wireless Smart Probe Kit for Ventilation and Air Conditioning

DISCONTINUED

DISCONTINUED

Characteristics	Testo 875i-2 Thermal Imaging Camera
	Large 3.5" LCD Screen
	Quality Resolution 160 x 180(with Optional SuperResolution 320 x 240)
	<50 mK NETD sensitivity
	High Temperature Option 1022°F
	TwinPix image blending
	Solar Mode
	Isotherms
	Voice Annotation
	Customizable Reporting Software

Applications:	Testo 875i-2 Thermal Imaging Camera
	Ability to identify mold risk areas
	For regular checks in electrical maintenance
	Support in preventive mechanical maintenance
	Fast and easy monitoring of filling levels
	More reliability in quality assurance and production monitoring
	Reliable high-temperature measurement
	Ensuring power generation
	Analyzing the superheating of circuit boards
	Checks heating, ventilation, and air conditioning systems quickly and easily
	Discovers trail of a pipe rupture: If you suspect a pipe is ruptured, the only solution is often to break open whole walls and floors to pinpoint the leak
	Assess problems and defects in building construction. Larger sensors provide you greater sensitivity and detail when performing building audits
	Locate high moisture areas that can become a breeding area for mold
	Pinpoint roof leaks. Inspect flat roofs for moisture penetration
