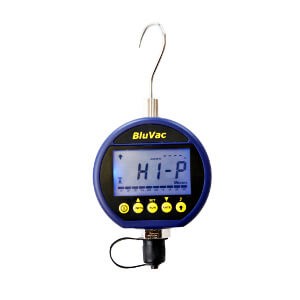

AccuTools BluVac Digital Vacuum Gauge

AccuTools BluVac Digital Vacuum Gauge (Replaced by AccuTools BluVac Plus Pro)

0 Review(s) Write a Review

DISCONTINUED

The AccuTools BluVac Digital Vacuum Gauge A10474 is a state-of-the-art digital vacuum gauge utilizing patent-pending technology to deliver the highest accuracy and resolution available.

MFG Part No.: A10474

Availability: DISCONTINUED

Description
Features
Specifications
Applications
Resources

Check out New and Improved BluVac Plus Pro Wireless Digital Vacuum Gauge - call, chat, or send an email with your questions or quote requests.

The AccuTools BluVac Digital Vacuum Gauge A10474 is a state-of-the-art hvac micron gauge utilizes patent-pending technology to deliver the highest accuracy and resolution available. Operating for up to 300 hours on a single 9V alkaline battery, the BluVac sports a large 1/2" numeric display and a bright blue backlight.

The BluVac electronic vacuum gauge measures from 0 to 25,000 microns with 0.1 micron resolution below 10,000 microns. The AccuTools BluVac HVAC Vacuum Gauge is programmable, increasing your productivity on the job. Its Vacuum Leak Rate indicator shows both evacuation progress, and assists in determining the presence of leaks or moisture. Also included is a temperature indicator accurate to within 0.2F (0.1C). Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac and BluVac LTE are the only field-calibratable hvac micron vacuum gauges that require no special equipment for calibration.

Includes: Accutools BluVac Electronic Micron Vacuum Gauge, detachable swivel hook, battery (one 9V alkaline), instruction manual.

	AccuTools BluVac Electronic Micron Vacuum Gauge with Brass Coupler
	0 to 25,000 Micron Range with 0.1 Micron Resolution less than 10,000 Microns
	Measures Vacuum in Microns, Pascals, Millibar, Millitorr and mmHg
	Large, high-visibility back-lit LCD display
	Programmable with unique alarm feature
	Long battery life — Up to 300 Hours on one 9V alkaline battery
	Analog Vacuum Level Bar Graph
	Vacuum Leak Rate and Ambient Temperature Indicator
	Automatic Oil Sensor
	Measures Temperature in Fahrenheit and Celsius to 0.1
	Built-in memory retains all previous settings
	Rugged, Compact Design — About the Size of a Manifold Gauge
	Calibration Self Test — Can be field calibrated with no special equipment
	Sensor withstands overpressure up to 500 PSI
	Ideal for HVAC/R Service and Industrial Use
Includes:	BluVac Digital Vacuum Gauge, detachable swivel hook, brass coupler, battery (one 9V alkaline), instruction manual

Specifications:	AccuTools BluVac HVAC Digital Micron Gauge
Range	0 - 25,000 Microns (3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg)
Vacuum Accuracy	5% of reading +/- 5 Microns
Vacuum Resolution	0.1 Microns (at 0.0 to 9,999.9 Microns)
Vacuum Resolution	1 Microns (at 10,000.0 to 25,000 to 25,000 Microns)
Maximum Overpressure	500 PSI
Temperature Accuracy	0.2F (0.1C)
Temperature Resolution	0.1 Degree
Warm-up Time	Instant
Response Time	Instant
Power	One 9V Alkaline Battery
Battery Life	Up to 300 Hours
Operating Temperature	10F - 122F (-12C - 50C)

Applications:	AccuTools BluVac Digital Vacuum Gauge with Brass Coupler
	Perfect for HVAC/R Service and Industrial Use
