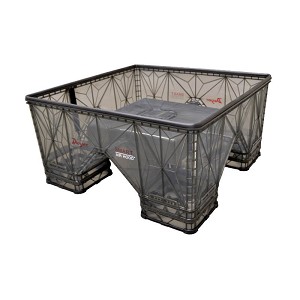

Dwyer SAH-22 Smart Air Capture Hood with Quad Flow Technology

Dwyer SAH-22 Smart Air Hood Balometer with Quad Flow Design

On Sale: ~~$5,668.57~~ $4,668.24

Retail Price:$5,668.57

You Save:$1,000.33(18%)

The Dwyer SAH-22 Smart Air Hood Balometer with Quad Flow Design minimizes backpressure and properly controls airflow for astoundingly accurate airflow measurements. It also features a lightweight yet durable build, Wi-Fi connect-ability to almost any smart device up to 200 yards, a rechargeable lithium ion battery, and easy to remove pressure sensors for simple yearly calibration.

MFG Part No.: Spring-Summer

Availability: Available for Orders, Coming Soon

Price Match Guarantee out of stock

Quantity

Description
Features
Specifications
Applications
Resources

The Dwyer SAH-22 with its revolutionary Quad Flow design is the most ergonomically, accurate and easy to operate air flow hood on the market. Dwyer has redesigned the airflow hood to get the most accurate airflow measurements achievable by minimizing back pressure and controlling the flow of air. The Smart Air Hood Balometer along with their PredictAir application software allows air balancing technicians to quickly and efficiently get the job done in half the time.

Key Features:

Revolutionary Quad Flow Design
PredictAir Software that has predictive balancing which guides the technician through balancing the air flow system
Hood is small, lightweight, and adjustable
Handheld test instrument can communicate with hood by WiFi up to 200 yards
Ergonomic design makes it easy for one person to manage

The SAH-22 is the smallest, lightest, most aerodynamic designed smart air capture hood. The hood is made out of durable, lightweight, polypropylene material and measures 2’ x 2’ by 12” tall and weighs only 6 pounds. The technician can easily maneuver the hood to capture the air flow from a variety of diffusers or grilles, lock the hood into place with the pivoting pole and use the handheld test instrument to easily get the readings necessary.

The Dwyer SAH-22 uses WI-Fi direct communication to communicate between the hood and handheld test instrument up to a distance of 200 yards. The handheld test instrument may be used on or off the included pole. Detaching the instrument is quick and easy with its quick release system, allowing the user to easily switch between viewing it on the pole or viewing it in-hand. The Smart Air Hood handheld instrument includes the PredictAir Application Software with its user friendly program guiding the technician in the balancing process.

The software uses the Predictive Balancing as a method of projecting the optimal flow set point for each diffuser and the order the registers are to be adjusted. After the initial readings for each diffuser in the room, the PredictAir software uses an algorithm to predict the most efficient way to balance the system. The technician is then prompted on the changes necessary to complete the air flow balance. Once adjustments are made the program has follow up prompts to verify readings are matching the system's predictions.

The Dwyer SAH Smart Air Hood Balometer is also equipped with temperature and humidity sensors that are used to detect differences in air density in order to improve the overall airflow measurements. These sensors display readings in the PredictAir app, but they are not accurate enough to be used for reporting purposes. It is recommended to use standalone units such as the Dwyer RP2 with its mobile gateway, the UHH-BTG.

This innovative program for balancing the system saves the technician time, money, and effort while providing more accuracy for the ventilating system in commercial buildings.

The report can be exported via email or saved to a file and imported into a tab reporting tool later.

Additional hood sizes are available. An extendable pole A-SAH-12P (adjustable from 4.5’ – 12’) is available for greater versatility.

The sensing pitot arrays and pressure sensors are easily detached so that they can be sent in yearly for calibration.

Dwyer SAH-22 comes with:

2’ X 2’ hood with NIST certificate

Handheld test instrument

3’ pole

Travel case

(0)

Alnor 6200 LoFlo Balometer Air Volume Capture Hood

~~$1,890.00~~ $1,701.00 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Alnor 6200D LoFlo Balometer Air Volume Capture Hood

~~$1,860.00~~ $1,674.00 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

TSI Alnor EBT731-STA Balometer Kit with Stand and Tablet Computer

~~$4,160.00~~ $3,744.00 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Testo 420 Balometer Flow Hood with Bluetooth and Soft Case

~~$3,495.00~~ $2,970.75 Sale

In Stock - Ships the Same Day Free Shipping.

Add To Cart

(0)

CPS Products ABM-HOOD-200 Airflow Capture Hood Balometer EasyHood

~~$518.20~~ $449.11 Sale

In Stock - Free 2nd Day Shipping | Savings Coupon: CSPHOOD Free Shipping.

Add To Cart

(0)

CPS Products ABM-HOOD Airflow Capture Hood Balometer EasyHood

~~$430.29~~ $372.92 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

Characteristics:	Dwyer SAH-22 Smart Air Capture Hood with Quad Flow Technology
Quad Flow Design Technology	Innovative design allows for even airflow and backpressure reduction. Accurate within 3% or better regardless of diffuser type.
Predictive balancing	Helps fully optimize any HVAC system by guiding the technician and setting the property airflow values for each diffuser
Outstanding Accuracy	Uses built-in temperature and humidity sensors to detect air density for more accurate airflow measurements
Ergonomic Design	Weighs only 6lbs. while also being made out of durable polymer plastic. Also mounts to an extendable pole for quick and easy maneuverability.
Mobile Speed	Test quicker and without being tied down to one specific location with 200 yards of Wi-Fi direct connection.
Lowest Total Cost of Ownership	Uses a rechargeable lithium battery backed up by 4 AA batteries resulting in no downtime. Easy to detach removable pitot arrays and pressure sensors for annual calibration.

Specifications:	Dwyer SAH-22 Smart Air Hood Balometer with Quad Flow Design
Service:	Air
Volume Flow Units:	CFM, l/s, m3/h
Volume Flow Ranges:	Supply: 40 to 2000 CFM. (68 to 3398 m3/h); Exhaust: 80 to 2000 CFM
Accuracy at Calibration > 40 CFM:	±3% of reading ±7 CFM*
Accuracy for Any Diffuser >40 CFM:	±3% of reading ±10 CFM**
Resolution:	1 CFM (1.7 m³/h) (.5 l/s)
Temperature
Units:	°C, °F, °K
Operating Range:	40 to 140°F (4.4° to 60°C)
Storage Range:	-4 to 122° F (-20° C to 50° C)
Accuracy	±0.3% of reading (no calibration required)
Relative Humidity:
Range:	5 to 95%
Accuracy:	±5% of reading (no calibration required)
Absolute Pressure:
Units:	mbar, Pa
Range:	10 to 2000 mbar
Accuracy @ 25°C and within 300 to 1100 mbar:	±2% of reading z9b (no calibration required)
Power Requirements:	3.6 V NCR18650B MH12210 lithium ion battery, included, user replaceable or (4) 1.5 V AA alkaline batteries, not included, user replaceable
Housing Material:	Polypropylene
Weight:	5.75 lb (2.6 kg)
*Based on calibration with Sensing Precision Calibration Fixture and Dwyer standard diffuser
**Based on any diffuser in the Dwyer downloadable library

Applications:	Dwyer SAH-22 Smart Air Capture Hood with Quad Flow Technology
	Useful for evaluating thermal comfort, HVAC testing, HVAC system adjusting and balancing, and air volume measurements

Dwyer SAH-22 Smart Air Hood Balometer with Quad Flow Design
