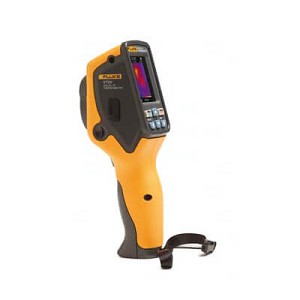

Fluke VT04 Visual IR Thermometer with Digital Camera

Fluke VT04 IR Thermometer with Visual Display

0 Review(s) Write a Review

DISCONTINUED

Fluke VT04 Visual IR Thermometer with Digital Camera is a breakthrough in thermal technology that combines the convenience of an IR spot thermometer with the features and accuracy of thermal imaging camera. Fluke VT04 is designed with PyroBlend Plus optics that provide a 4x sharper image than the Fluke VT02 and allow for blending of thermal readings and visible light images that make it easy for the technician to locate problem areas.

Availability: DISCONTINUED

Description
Features
Specifications
Applications
Resources

The Fluke VT04 IR Thermometer with Visual Display features live thermal imaging capable of showing the user temperatures visually wherever the device is aimed. Features a NEAR and FAR mode to adjust the visual and thermal lenses.

(0)

Fluke 700P05 Pressure Module

DISCONTINUED

DISCONTINUED

(0)

Fluke 700P06EX IS Pressure Module

DISCONTINUED

DISCONTINUED

(0)

Fluke 190-102 Color ScopeMeter 100 MHz 2 Channels

DISCONTINUED

DISCONTINUED

(0)

Fluke TiR3/FT-10/20 Thermal Imager with Fusion

DISCONTINUED

DISCONTINUED

(0)

Fluke CLKTO IR Window for Indoor Medium Voltage Applications

DISCONTINUED

DISCONTINUED

(0)

Fluke Ti300 Thermal Imager with 60Hz Advanced Performance

DISCONTINUED

DISCONTINUED

Specifications:	Fluke VT04 Visual IR Thermometer with Digital Camera
Built-in digital camera	Yes
Thermal heat map overlay	Yes, five blending modes
Field of view	28° x 28°
Hi-Lo temperature alarms	Yes
Time lapse image capture	Yes
Auto-monitor alarm	Yes
Battery type	Li-Ion rechargeable
Training	No training required
Ergonomics	Slim pocket-sized design
Hot and cold markers	Yes
Battery life	Eight (8) hours
Temperature measurement range	-10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy	+/- 2 °C or +/- 2 %
Temperature measurement	Yes, centerpoint
Storage medium (micro SD card)	Stores up to 10,000 images per Gb (Four (4) Gb card included)
Infrared spectral band	6.5 µm to 14 µm
Level and span	Auto
Focus mechanism	Focus free, no training required with built-in intelligence
Focus options—exclusive user selectable NEAR/FAR options	NEAR > 23 cm (9 in); FAR < 23 cm (9 in)
Dimensions	21 cm x 7.5 cm x 5.5 (8.3 in x 3 in x 2.2 in); < 300 g. (10.5 oz.)
File format	.is2 format saved to SD card. User can create professional reports or export images in Smartview (BMP, DIB, GIF, SPE, FIF, SPEG, JPG, PNG, TIF and TIFF)
Safety and compliance	CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010
Warranty	Two (2) years

Applications:	Fluke VT04 Visual IR Thermometer with Digital Camera
	Detect overloaded breakers
	Evaluate compressor heat expansion valves
	Detect overheating motors
	Check 3 phase power supply balance
	Detect overheating bearings
	Detect malfunctioning combination starters
	Find faulty air dampers
	See abnormal heat patterns in AC condenser
	Find issues with switchgears
	Monitor power factor correction capacitors
	Ensure function of hydronic and radiant flooring
	Detect overheating pulley and belts
	Locate potential heat loss from doors and windows
	Check fans for high-powered equipment

Chracteristics:	Fluke VT04 IR Thermometer with Visual Display
	Measuring range: 14

Fluke VT04 IR Thermometer with Visual Display
