TPI 126 Digital Multimeter

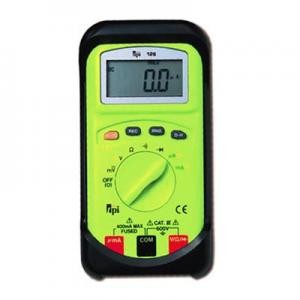

TPI 126 Handheld Compact Digital Multimeter

0 Review(s) Write a Review

On Sale: ~~$59.95~~ $50.57

Retail Price:$59.95

You Save:$9.38(16%)

TPI 126 Digital Multimeter. Compact autoranging DMM with 0.3 percent DCV basic accuracy and 400mA AC/DC range.

MFG Part No.: 126

Availability: In Stock.

Quantity

Description
Features
Specifications
Applications
Resources

TPI 126 Digital tester has a 4,000 ct. LCD screen, 0.3 % DCV simple precision, 0 to 600 volts Alternating Current and Direct Current- max resolution 0.1Volt, 0 to 40M ohm resistance - max resolution 0.1 ohm, stability beeper, 0 to 400 mA amps A Alternating Current and Direct Current max resolution 0.01mA, Autoranging, Min/Max, Data Hold, Sleep mode/automatic off, is cULus 61010-1, CAT II - 1000V, CAT III - 600V safety-rated, and has a 3yr. Ltd. Warranty.

(0)

Fluke 115 TRMS Compact Digital Multimeter

~~$266.99~~ $240.29 Sale

Available for Orders, Coming Soon

Add To Cart

(0)

Fluke 83-5 Digital Multimeter for Industrial Applications

~~$479.99~~ $431.99 Sale

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Fluke-287-FVF Multimeter Combo Kit with FlukeView Forms

$1,009.99

Available for Orders, Coming Soon Free Shipping.

Add To Cart

(0)

Extech EX505-K TRMS Heavy Duty Digital Industrial Multimeter Kit

$152.99

Available for Orders, Coming Soon

Add To Cart

(0)

Greenlee DM-860A-C Commercial Digital Multimeter

~~$562.50~~ $492.19 Sale

In Stock. Free Shipping.

Add To Cart

(0)

Amprobe AM-530 TRMS Multimeter for Electrical Contractors

~~$137.99~~ $113.64 Sale

Available for Orders, Coming Soon

Add To Cart

Chracteristics:	TPI 126 Handheld Compact Digital Multimeter
	0 to 600 volts Alternating Current and Direct Current
	Max resolution 0.1V0 to 40M ohm, 0.1 ohm, 0.01mA
	Stability beeper
	0 to 400 mA amps Alternating Current and Direct Current
	Autoranging/Min/Max/Data Hold/ Sleep mode/automatic off
	cULus 61010-1, CAT II - 1000V, CAT III - 600V safety-rated
	3yr. Ltd. Warranty

DC Volts Maximum Input:	1000V Maximum Resolution: 0.1mV Accuracy: +/-0.3 percent
AC Volts Maximum Input:	750V Maximum Resolution: 0.001V Accuracy: +/-0.8 percent
DC Amps Maximum Input:	400mA Maximum Resolution: 0.1uA Accuracy: +/-0.8 percent
AC Amps Maximum Input:	400mA Maximum Resolution: 0.1uA Accuracy: +/-0. percent
Resistance (Ohms) Maximum Input:	40M ohm Maximum Resolution: 0.1 ohm Accuracy: +/-0.5 percent
Frequency	N/A
Capacitance	N/A
Inductance	N/A
Temperature (K-Type Thermocouple)	N/A
Continuity	Audible at less than 50 ohm
Diode	3V at 30uA maximum output
Duty Cycle	N/A
True RMS Responding	No
Conductance	No
Pulse Width	No
Data Hold	Yes
Min/Max Record	Yes
Time Stamp Logging	No
Relative Mode	No
Compare Mode	No
RS-232 Output	No
Process Loop Output	No
Sleep Mode / Auto Off	Yes
Protective Boot	Yes (standard)
Display Type	4000 count LCD
Range Selection	Auto / Manual
Operating Temperature	32 degrees F to 104 degrees F (0 degrees C to 40 degrees C)
Storage Temperature	14 degrees F to 122 degrees F (-10 degrees C to 50 degrees C)
Humidity	80 percent non-condensing
Size	6 inch x 3.1 inch x 1.2 inch (187mm x 86mm x 33mm) with boot
Weight	12oz (340g) with boot
Battery Type	1.5V AA Alkaline (2)
Battery Life	200hrs Typical
Overvoltage Category	CAT III 600V
Agency Approval	cULus 61010-1, IEC 61010-1
Warranty	3 Years

	Thermocouples in furnaces or gas applications
	Thermocouples in furnaces of gas applications. DC Controlled circuits
	Heat anticipator current in thermostats
	Line voltage
	Control circuit voltage
	Flame safeguard control current
	Heating element resistance (continuity)
	Compressor winding resistance
	Contactor and relay coil resistance
	Continuity of wiring
	Temperature w/ optional temperature adapter
